Clean Power

Modular Battery Energy Storage Systems (BESS) represent a breakthrough in energy storage technology, offering a scalable, flexible, and efficient solution for managing electricity supply and demand. These systems consist of interconnected battery modules that can be expanded or reduced based on energy requirements, making them ideal for residential, commercial, government services, and industrial applications.

Advantages Scalability & Flexibility, allowing easy expansion when needed; Advanced Battery Chemistry batteries that enhance energy density, lifespan, and safety, AI-driven Smart Energy Management optimizes energy use, and Hybrid Integration seamlessly integrating with renewable energy sources (solar, wind) and the grid, ensuring stable power supply.

Product Features

✔ High Efficiency 97.6
    With cooling system ensures higher efficiency and longer battery cycle life.

✔ Easy Installation
    Highly integrated ESS for easy transportation and O&M
    All pre-assembled, no battery module handling on site.

✔ Various Application Solutions
    Variety of applications are supported such as peak-shift, peak-cut, frequency regulation, etc.

✔ Safety and Reliable
    Multi-level battery protection layers formed by discreet standalone systems offer impeccable safety.


Application Scenarios

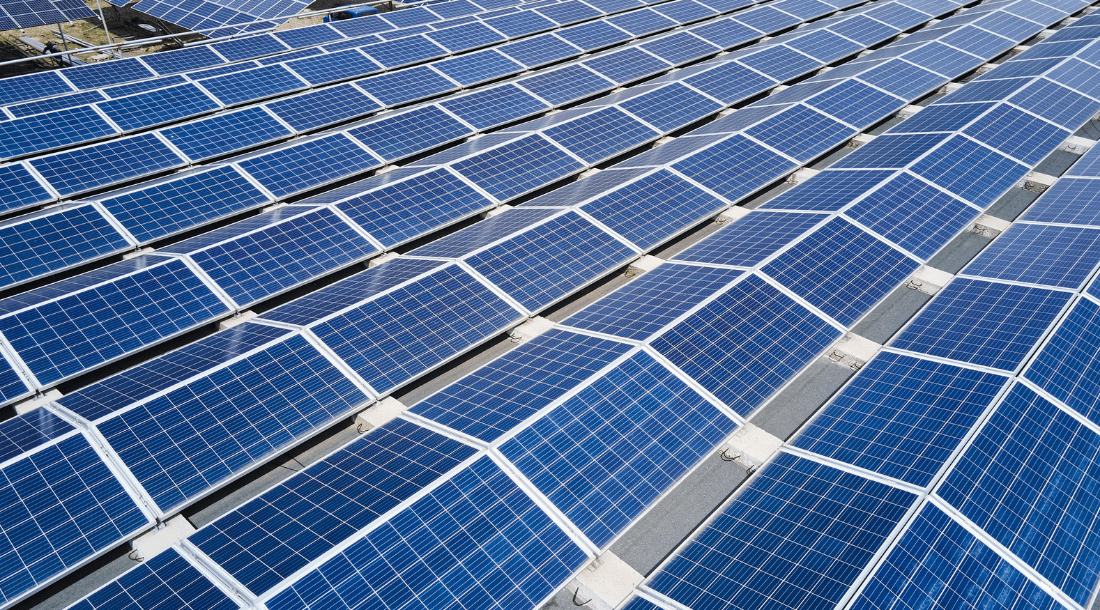

Solar EV Charging Systems

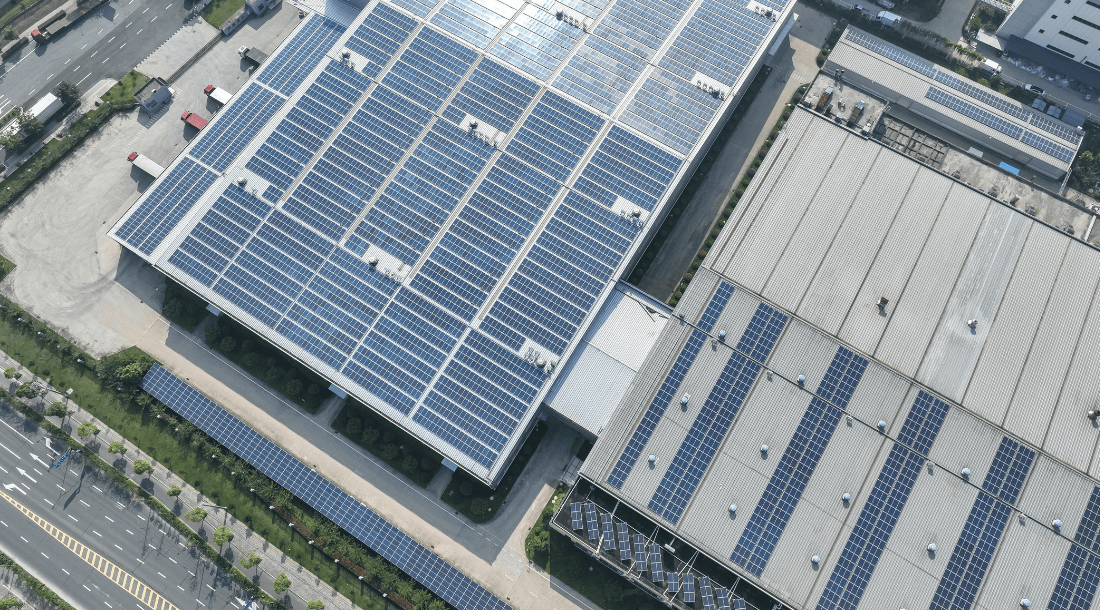

High Powered Industry
Energy Arbitrage

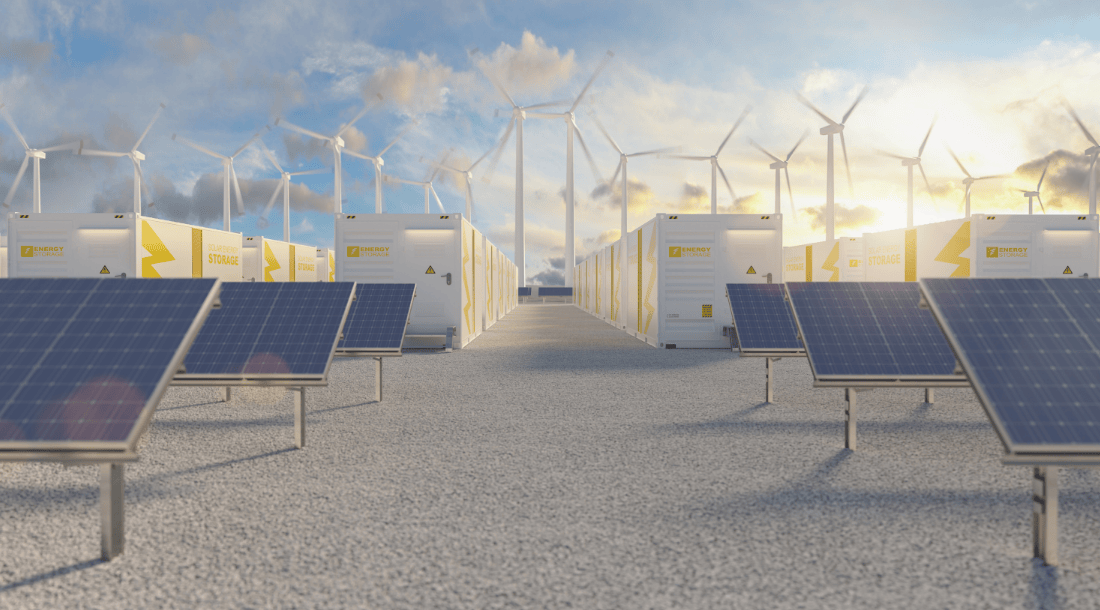

Microgrids
Paramaters

  Battery Side Parameters
  Cell Parameters 3.2V280Ah LFP
  Pack Parameters 1P16S
  Battery Cluster 1P16S*15
  System Combination 2*1P240S
  Rated Energy 430kWh
  Rated Voltage 768V
  Operating Voltage Range 720-850V
  Rated Multiplier 0.5P
  Photovoltaic Side Parameters
  Rated Voltage 600V
  Rated Current 100A
  Mppt Maximum Range 420-850V
  Mppt Rated Power 50KW
  Number Of Mppt Channels 3
  AC Side Parameters
  Output Power 150KW
  Rated Voltage 380/400V 3W+N+PE
  Rated Trequency 50HZ
  Response Time 20ms
  Conversion Efficiency 98%
  System Parameters
  Operating Temperature Range Charge:0~55°C / Discharge: -10~60°C
  Operating Humidity Range 5-85%RH
  Depth Of Discharge 80-90%
  Cycle Life 25±2℃/0.2C/80% DOD≥8000
  Protection Grade IP55
  System Cycle Efficiency ≥90%@AC
  Cooling Method Air cooling
  Fire-fighting System Perfluorohexanone
  Dimension 10FT
  Certificate Cell:UL1973/IEC62619/UL9540A/TUV/CE
  630A DC Battery Combiner Cabinets
  Product Model 1000V DC 630A * 1 PCS
  Maximum Working Voltage 1000V
  Maximum Charge/discharge Current 630A
  PCS Power 250KW-500KW
  Communication Mode TCP/485/CAN/232
  Operating Temperature Range Charge: 0~55°C / Discharge: -10~60°C
  Operating Humidity Range 5-85%RH
  Protection Grade IP20
  Fire Fighting System Aerosol
  Dimension 700*600*1680mm

Above specifications are based on a 10' container configuration.
Design can be modified and adapted based on requirements.
